Engine Rebuild



This entire engine rebuild is being done at ABT Machine in Holliston, MA USA

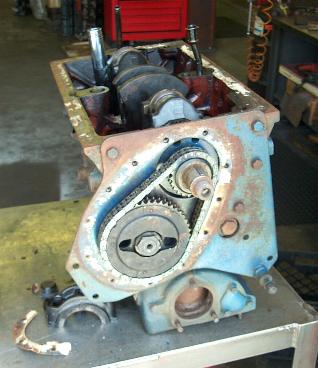

Engine Before

Engine After cleaning and Magnaflux

There is some pitting around the head bolt holes, however, the deck has been planed and there is no bridging in the critical areas.

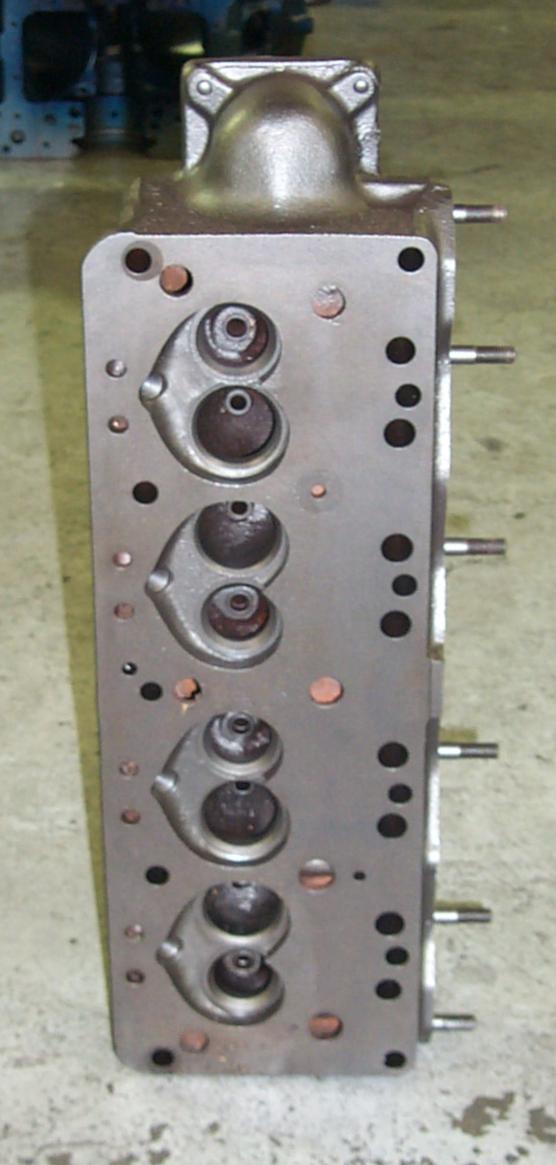

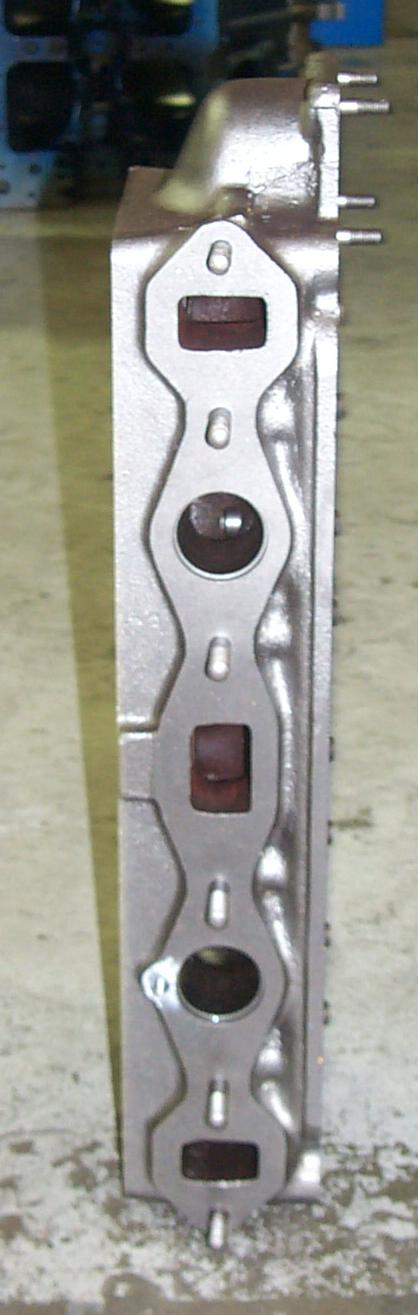

Head after cleaning - oooo!

This Head is being assembled with the Lemans type camshaft, it requires the springs and upper and lower caps from the 3000 series.

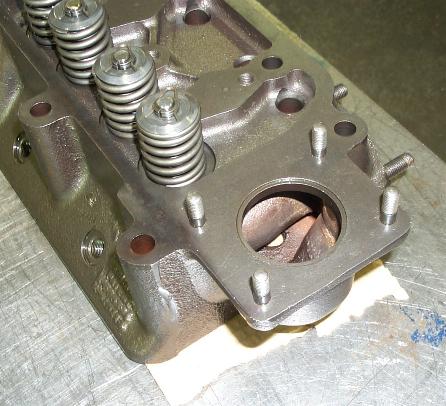

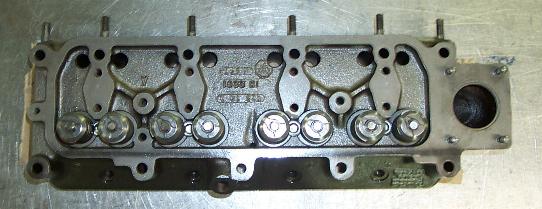

Head being reassembled


Valve Bottoms - With new seats

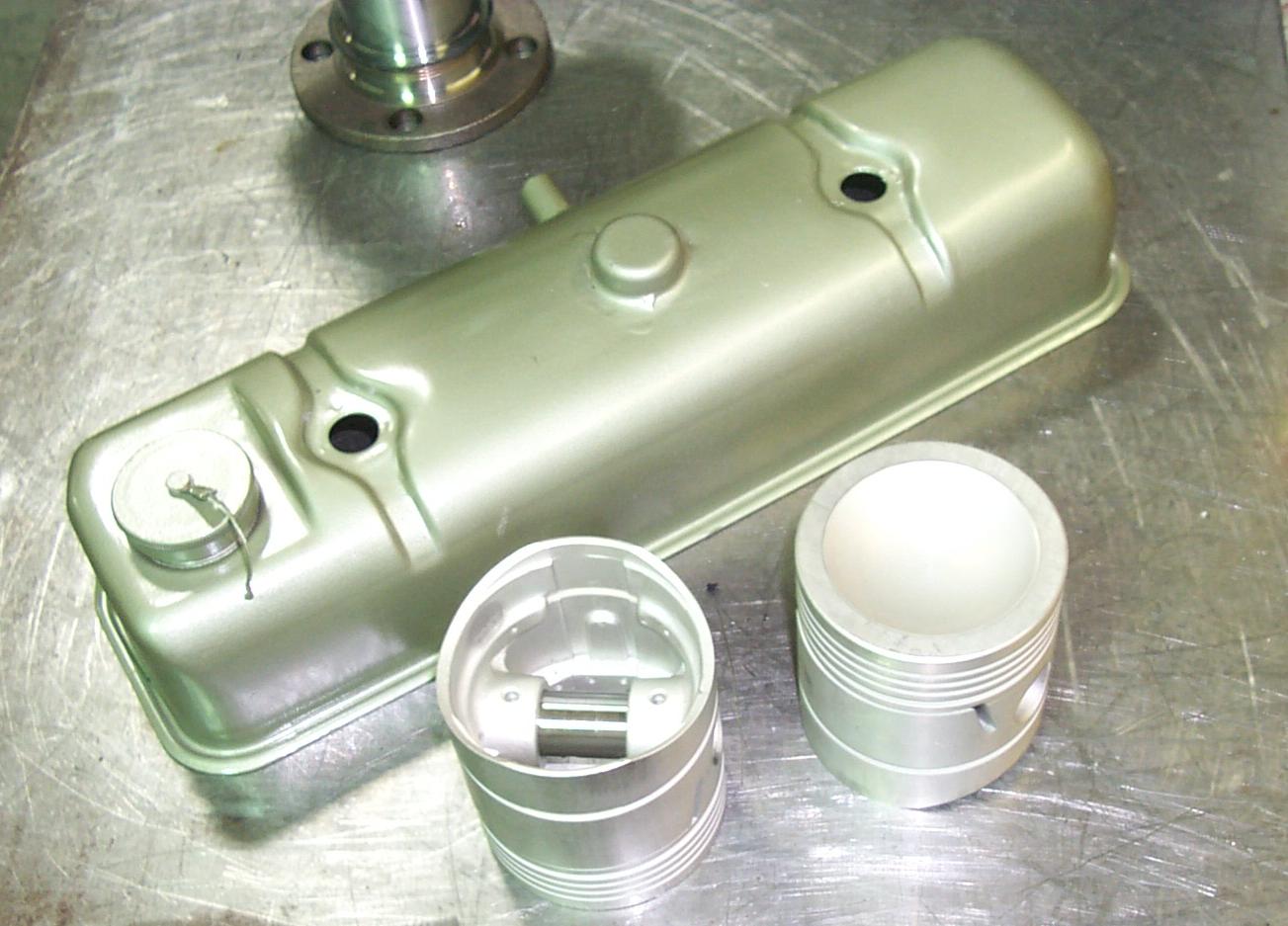

Valve cover in Healey Engine enamel and New pistons (Lemans Type)


The Rotating Mass ready for balancing

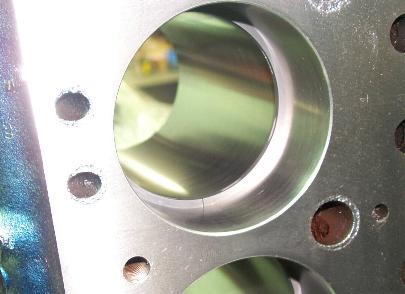

Ring set in the cylinder for proper gapping

Tom using a piston to set the ring to an accurate depth all around

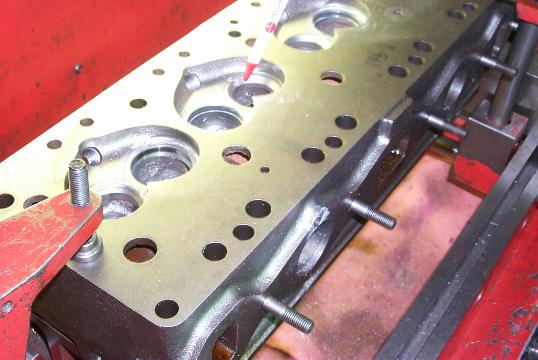

Bill points out a newly inserted and ground valve seat

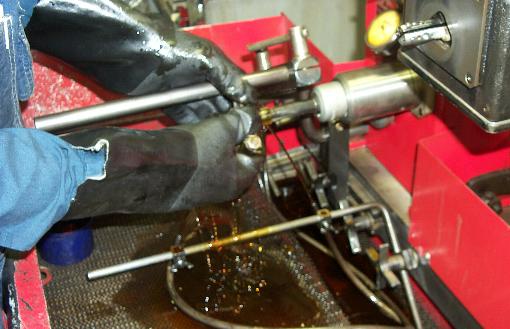

This machine is used to hone a variety of engine parts. Tom is demonstrating on a rocker and bushing
